Precision ServicesLASER ALIGNMENT

ROTATEK is a leading provider of precision measurement and laser alignment services for industrial rotating equipment. Utilizing the latest 2D and 3D technologies available, we are able to perform these services faster with higher accuracy and greater precision than traditional methods reducing outage time and increasing equipment reliability.

Today, precision alignment of rotating machinery is more important than ever. Though rotating machinery made today may have higher efficiency and output ratings, many are manufactured to be smaller, lighter, and faster requiring higher precision alignments. ROTATEK can maximize your equipment’s efficiency and uptime with our precision alignment and balancing services.

Our commitment to excellence paired with our state-of-the-art measurement capabilities makes ROTATEK your trusted precision service partner.

Industrial Laser Alignment Service

Shaft alignment is the process of aligning the rotational centers of two or more shafts so they are co-linear with each other when the machines are under normal operating conditions.

A detailed graphical measurement report showing the “As Found” and ” As Left” conditions is supplied with all precision measurement services.

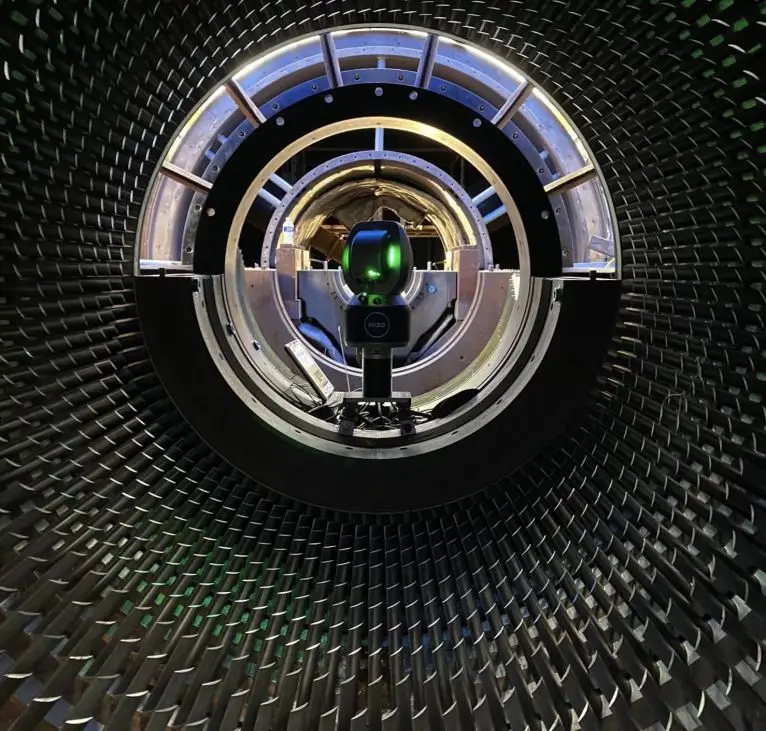

Gas Turbine Alignment

Gas Turbine Laser Alignment Service

3D laser alignment and precision measurement solutions including internal alignment, shaft alignment, dimensional analysis, horizontal joint deformation, and more…

Hydro Turbine Alignment

Hydro Turbine Alignment Service

Utilizing the latest technologies, ROTATEK can shorten your hydro unit’s outage time with the most accurate vertical shaft alignment, bore alignment, geometric alignment and dimensional analysis services available.

Steam Turbine Alignment

Steam Turbine Laser Alignment Service

From installation to overhaul and maintenance, our 3D measurement solutions can out-perform traditional methods saving valuable outage time and money.

Feed Pump Alignment

Boiler Feed Pump Laser Alignment Service

High temperature pumps may experience thermal growth and dynamic movement affecting shaft alignment. ROTATEK can measure the positional changes in real-time and align your rotating machinery to compensate for them.

Hot Alignment

Hot Alignment Service

High temperature machinery may experience thermal growth and dynamic movement affecting shaft alignment. ROTATEK can measure the positional changes in real-time and align your rotating machinery to compensate for them.

Machine Train Alignment

Multi-Coupling Laser Alignment Service

Simultaneous multi-coupling measurements and live move monitoring of machine moves can save hours when aligning multi-coupling machine trains.

Marine Alignment

Marine Laser Alignment Service

Main propulsion alignment, generator alignment, gearbox alignment, stern tube bore alignment, strut bore alignment, bearing alignment, coupling and shaft alignment services.

Vertical Pump Alignment

Vertical Pump Laser Alignment Service

Precision vertical pump services include vertical laser shaft alignment, coupling alignment, motor alignment and base leveling.

Roll Alignment

Roll Alignment Service

ROTATEK provides 3D roll alignment services utilizing highly accurate laser trackers that can measure centerline, parallelism, perpendicularity, cylindricity, circularity, straightness, levelness and other geometric measurements faster than any other method.

Blower Alignment

Industrial Blower Laser Alignment Service

Services include coupling alignment, shaft alignment, belt alignment and bearing alignment. All blower types including high pressure blowers, multi-stage centrifugal blowers, positive displacement blowers, compressors and more.

Fan Alignment

Industrial Fan Laser Alignment Service

Services include coupling alignment, shaft alignment, belt alignment and bearing alignment. All fan types including ID fans, FD fans, cooling tower fans, centrifugal fans, axial fans and more.

Dredge Pump Alignment

Dredge Pump Laser Alignment Service

Complete dredge pump, gearbox, engine, propulsion, electric motor, bearing, coupling & shaft alignment services. Simultaneous multi-coupling measurement. Suction Dredges, Cutter Dredges, Hopper Dredges…

Bore Alignment

Laser Bore Alignment Service

Bore alignment in crankcase main bearings, cylinder to crossheads, compressors, diaphragms, gas and steam turbines, pumps, stern tubes, gearboxes, extruders and more.

Extruder Alignment

Extruder Laser Alignment Service

3D Extruder alignment services include precision extruder barrel bore alignment, gearbox alignment, electric motor alignment, cylindricity, circularity, straightness, flatness, levelness and more…

Flatness Measurement Service

Flatness Measurement Service

Utilizing the latest 2D and 3D technologies available, we are able to measure flatness and levelness faster with higher accuracy and greater precision than traditional methods.

Generator Alignment

Generator Laser Alignment Service

Turbine generator laser alignment, shaft generator laser alignment, machine train laser alignment services

Compressor Alignment

Compressor Laser Alignment Service

Natural gas compressor alignment services include shaft, coupling, frame, crankshaft bores, cross-head, cylinder, flatness, foundation, soleplate, leveling, laser alignment and precision measurement services

Ship to Shore Crane Alignment

Ship to Shore Crane Laser Alignment Service

Cardan Shaft Alignment

Cardan Shaft Alignment Service

Universal joint shafts, cardan shafts, drive shafts

Geometric Alignment

Geometric Alignment Service

Bearing Alignment

Bearing Alignment Service

Laser Alignment Services

Shaft Alignment
Coupling Alignment
Bore Alignment
Roll Alignment
Industrial Alignment
Machinery Alignment
Geometric Alignment
Levelness, Flatness, Perpendicularity, Concentricity, Parallelism
Horizontal Alignment and Vertical Alignment
2-D and 3-D Alignments
Machine Train Alignment
Simultaneous Multi-Coupling Measurement
Live Monitoring of Machinery Alignment
Thermal Growth and Dynamic Movement Surveys
Hot Alignment Targets
Electric Motor Alignment, Engine Alignment, Generator Alignment
Pump Alignment, Vertical Pump Alignment, Hydro-Turbine Alignment
Gas Turbine Alignment, Steam Turbine Alignment, Wind Turbine Alignment
Blower and Fan Alignment, Compressor Alignment, Turbine Alignment
Gearbox Alignment, Extruder Alignment, Ship-to-Shore Crane Alignment
Cardan Shaft Alignment, Fluid Drive Alignment, Diaphragm Alignment
Marine Alignment, Stern Tube Alignment, Strut Alignment, Propulsion Alignment
Bearing Alignment and more…
Laser Alignment Rentals

Why Align?

Misalignment costs time and money

Did you know over 50% of rotating equipment failures are directly related to misalignment and unbalance? Misaligned or unbalanced equipment are subjected to higher vibration levels significantly reducing the service life of bearings, seals, shafts and couplings.

Why Choose Rotatek?

ROTATEK can help reduce overall operating costs and increase equipment reliability, efficiency, productivity and uptime with our precision balancing and expert laser alignment services.
Our field service engineers have extensive knowledge with rotating equipment and are trained in the latest measurement technologies and precision maintenance practices
We are committed to excellence and are dedicated to provide you the best service possible
We travel to you no matter where in the world you may need us
24/7 emergency service is available
We can Align Anything, Anytime, Anywhere

Benefits of Precision Alignment

Precision alignment benefits:

Reduced overall operating costs
Reduced power consumption
Reduced machinery vibration
Reduced wear on bearings, seals, shafts and couplings
Reduced machinery failures
Reduced vibrations in machine bases, foundations, ductwork, piping, etc

Industries Served

Aerospace
Automotive
Construction
Converting
Petrochemical
Manufacturing
Nuclear
Oil and Gas
Plastics
Power Generation
Marine and Shipbuilding
