HYDRO TURBINE ALIGNMENT SERVICE
ROTATEK provides advanced 3D hydro turbine alignment service and precision measurement solutions for power generation applications worldwide. Our field service service engineers utilize state-of-the-art FARO Vantage laser trackers enabling us to measure quickly, accurately and precisely.
From installation to overhaul and maintenance, our measurement solutions can out-perform traditional methods by more than 50% saving valuable outage time and resources for your Impulse and Reaction style turbines including Francis Hydro Turbines, Kaplan Hydro Turbines, Pelton Hydro Turbines and others.
A detailed graphical measurement report is supplied with all precision measurement services.
Our commitment to excellence paired with our state-of-the-art measurement capabilities makes ROTATEK your trusted precision service partner.
HOW CAN WE HELP YOU?
Our expert team is ready to help you with your next project. Explore the industries we serve or contact us to learn more.

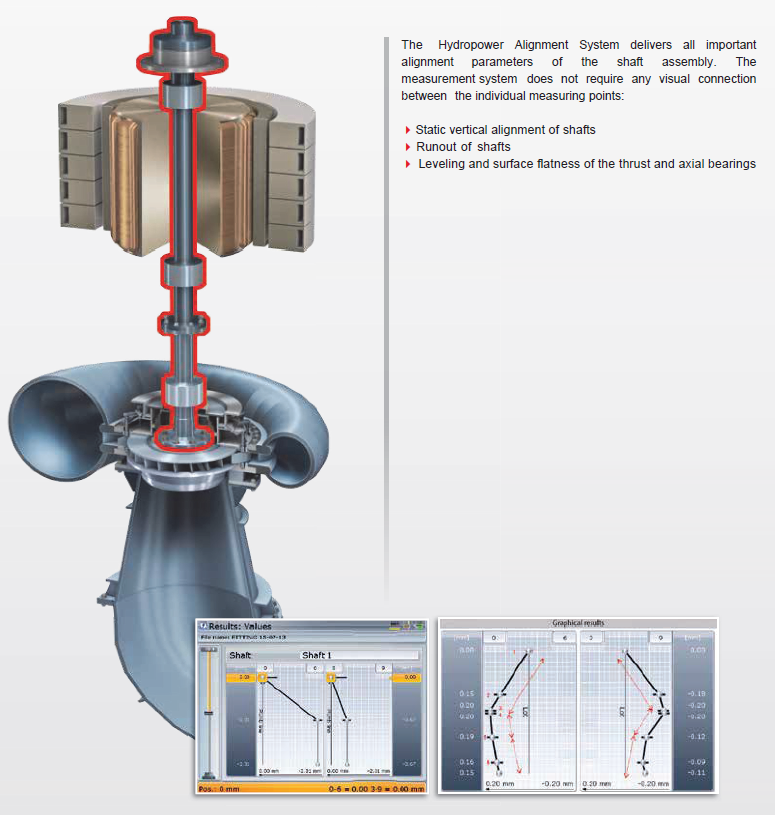

3-D Laser Alignment and Measurement Solutions for Hydro Turbines
Unlike traditional alignment methods using piano wire, alignment telescopes and 2d laser optics, ROTATEK field engineers utilize 3D portable coordinate measuring machines (PCMM) including Laser Trackers and Articulating Arms for unparalleled accuracy, precision and measurement acquisition time.
Hydro turbine laser alignment services and precision measurement solutions include 3D alignment, turbine geometry and dimensional analysis, large part inspections, reverse engineering, geometric dimensioning, tolerancing, levelness, plumbness, flatness, straightness, concentricity, parallelism, circularity, cylindricity, perpendicularity and more for Impulse and Reaction type turbines including Francis Hydro Turbines, Kaplan Hydro Turbines, Pelton Hydro Turbines and others.
NIST Traceable
ROTATEK utilizes Laser Trackers that are NIST Traceable and measurement results are documented in a detailed graphical report.
Turbine Geometry
Turbine geometry is measured with the laser tracker for fast and accurate dimensional analysis of critical parts.
Levelness and Flatness
Accurate laser tracker measurements can quickly verify each turbine component meets levelness and flatness tolerances to ensure a reliable installation.

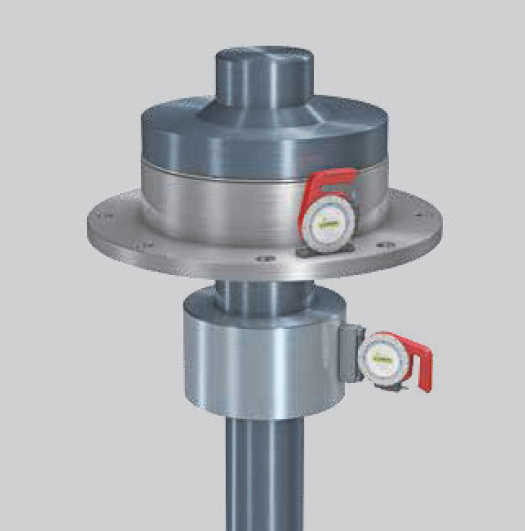

Bore Alignment
Bearings and stationary turbine components are accurately aligned to reduce unwanted vibration and ensure safe, reliable and efficient hydro turbine operation.

3-D Measurements
Laser trackers operate by measuring two angles and a distance. The tracker sends a laser beam to a retroreflective target held against the object being measured. As light is reflected off the target, it bounced back and re-enters the tracker at the same position it left and is measured by a distance meter, measuring the distance between the tracker and target.
Distance Measurement
The tracker sends a laser beam to a retroreflective target held against the object to be measured. The reflectedbeam returns to the tracker and its precise distance is recorded.
3D Measurement
Two angle encoders measure the elevation and rotational angles while a highly accurate absolute distance meter is used to determine the 3D position of the target. This position is shown in the software as an X, Y, Z value.
Tracking
The target returns the reflected laser beam parallel but offset back to the tracker where it hits the position detector, which calculates the offset between the outgoing and incoming beam. Servo motors continuously (thousands of times per second) steer the tracker’s head to minimize the offset between the two beams, resulting in high-speed, dynamic measurements.
- Machinery Alignment
- Machine Installation
- Geometric Dimensioning and Tolerancing (GD&T)
- Straightness
- Concentricity
- Flatness
- Levelness
- Perpendicularity
- Parallelism
- Component Inspection
- Large Part Inspection
- Cad Based Inspection
- Tool Building and Setup
- Machine Calibration
- Dimensional Analysis
- Thermal Growth and Dynamic Movement
- Deformation and Deflection
- Reverse Engineering and more…
3D measurement saves you time and money when compared to traditional measuring methods. Measurement results are available in real-time and a graphical report makes it easy to compare results after corrections. Results can be used in CAD software for further analysis.
ROTATEK’s field service engineers are factory trained and have extensive experience with precision alignment, geometric dimensioning and analysis.
Our coordinate measuring machines are the most advanced available today enabling us to measure quickly, accurately and precisely.
We can measure and align anything, anytime, anywhere.
- Shaft Alignments, Bore Alignments, Roll Alignments
- Geometric Alignments
- Horizontal Alignments, Vertical Alignments
- Cardan Shaft Alignments
- Machine Train Alignments, Fluid Drive Alignments
- Simultaneous Multi-Coupling Measurements
- Live Monitoring of Machinery Alignments
- Thermal Growth and Dynamic Movement Monitoring
- Custom Hot Alignment Targets
- Blower and Fan Alignments, Compressor Alignments
- Electric Motor Alignments, Engine Alignments, Generator Alignments
- Extruder Alignments, Gearbox Alignments, STS Crane Alignments
- Pump Alignments
- Turbine Alignments, Diaphragm Alignments, Bearing Alignments
